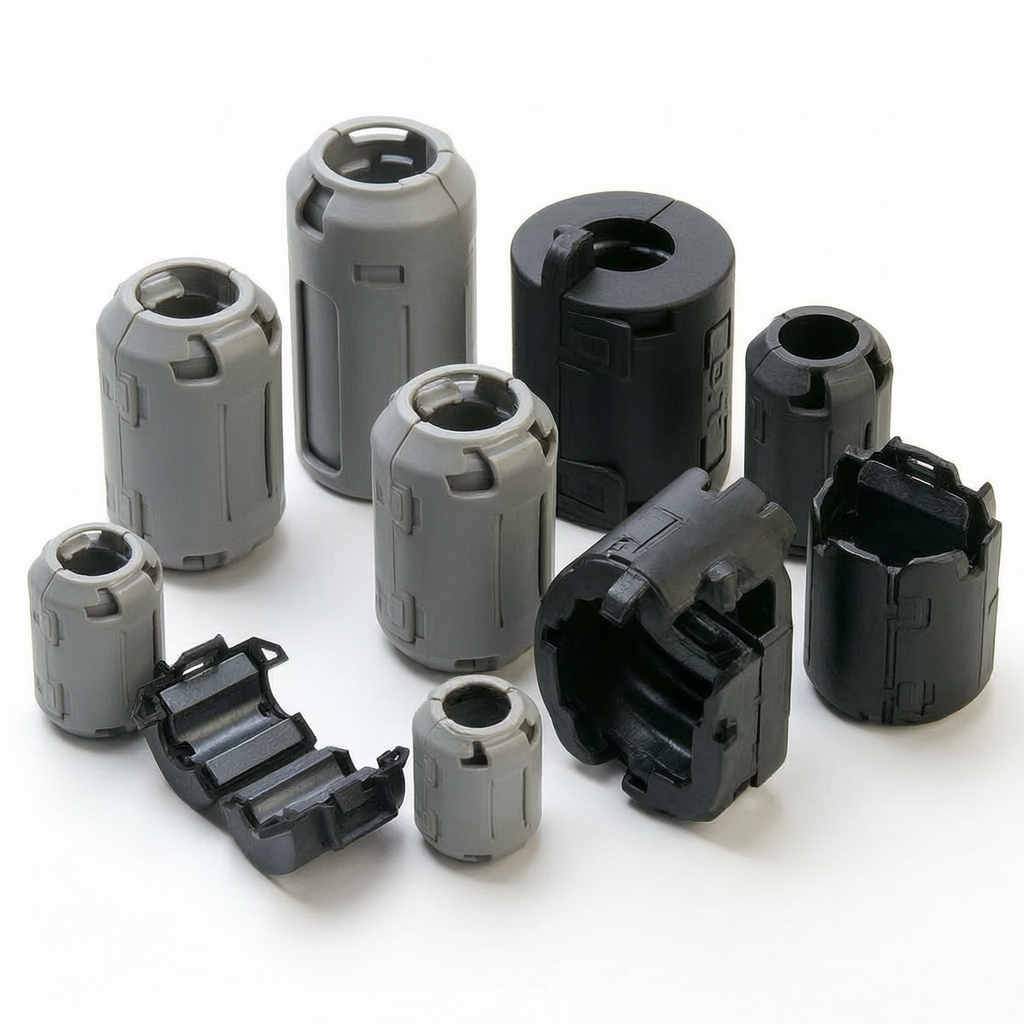

SCRC/SCNF Snap-on Ferrite Core
SCRC/SCNF Snap-on Core
Snap-on design for easy, reusable installation without disconnecting cables. Ideal for EMI filtering on power, data, and video lines. Available in multiple inner diameter sizes.
Technical Specifications
Technical Specifications
| Product Model | SCRC/SCNF Series |

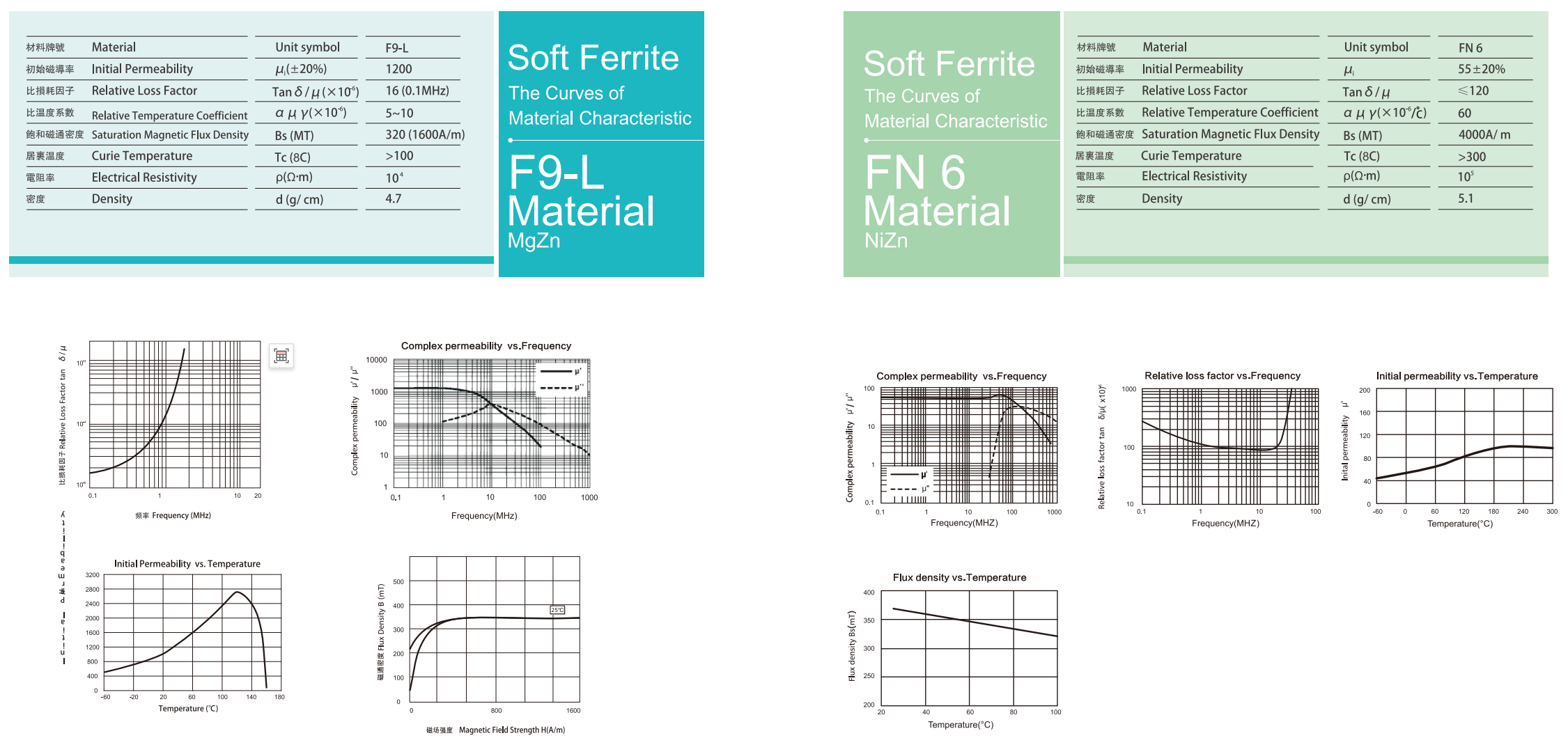

| Material Type | Nickel-Zinc Ferrite (Ni-Zn Ferrite) |
| Installation Method | Snap-on / Clip-on |
| Impedance Range | 50Ω - 5kΩ @ 100MHz |
| Operating Frequency | 10 MHz - 1 GHz |
| Operating Temperature | -25°C ~ +85°C |
| Inner Diameter Range | 5mm - 30mm |
| Features | Reusable without disconnecting cables |
Product Features
Product Features
Applications
Application Areas
This product is widely used in the following areas
Download Center
Downloads
Download product specifications, technical manuals, and related documents

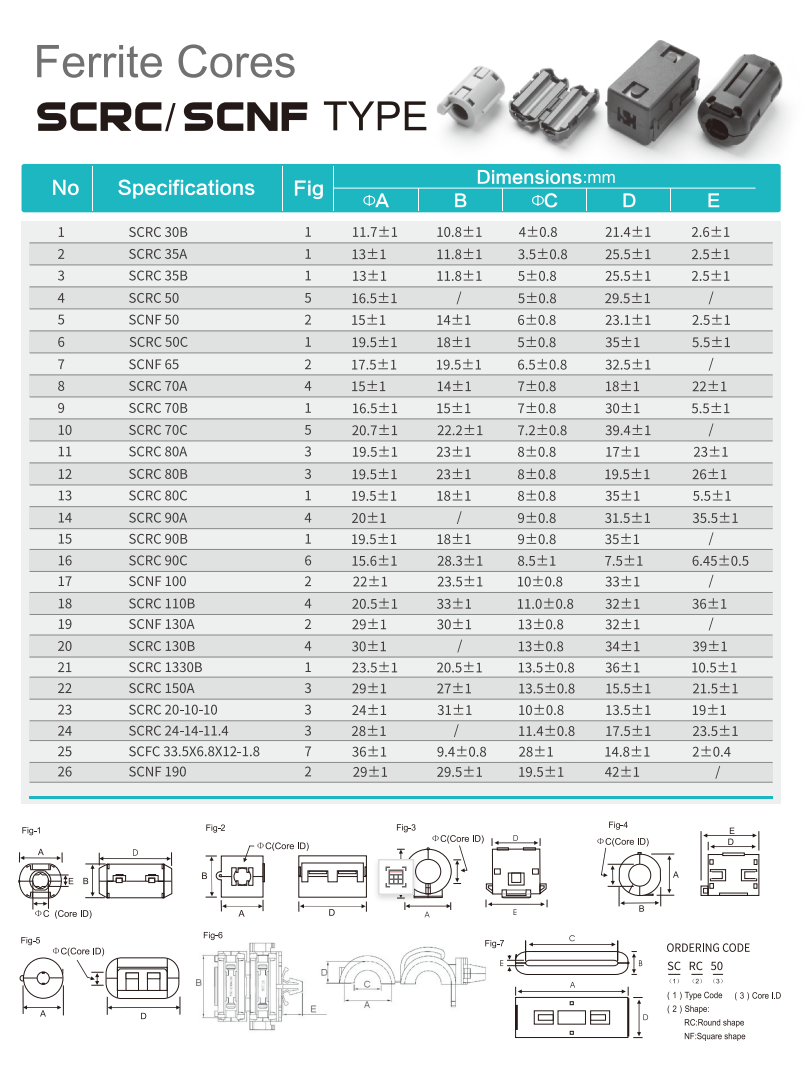

SCRC/SCNF Snap-On Ferrite Core Product Specification
